If you 3D print with rubber-like flexibility & industrial strong filament, you might agree that it's hard to get it exactly right. To help you get started and learn how to print with FormFutura TPU, we wrote this Material Guide - TPU Filament!
By the end of this 3D Printing Material Guide, you'll be armed with all the knowledge about TPU characteristics, printing properties, techniques, subtypes, and how to pick the best one for your unique project!
The Stars of the Show
Python Flex is a very flexible type of 3D printer filament. This makes it the perfect filament for 3D prints that require to be strong and resilient while maintaining its flexibility and elasticity.
Python Flex 98A - Python Flex TPU 98A is a flexible type of 3D printer filament with a shore hardness of 98A, which falls on the firmer side of flexible filaments, similar to a bendy phone case but not as soft as a rubber band. This makes it perfect for 3D printing strong and resilient parts that require flexibility and elasticity.
Python Flex 90A - Python Flex TPU 90A is a very flexible type of 3D printer filament with a shore hardness of 90A. This indicates a softer and more elastic material compared to TPU 98A, resembling the flexibility of a thick rubber band. It's ideal for applications requiring high flexibility and stretch, such as gaskets, seals, and grippers.

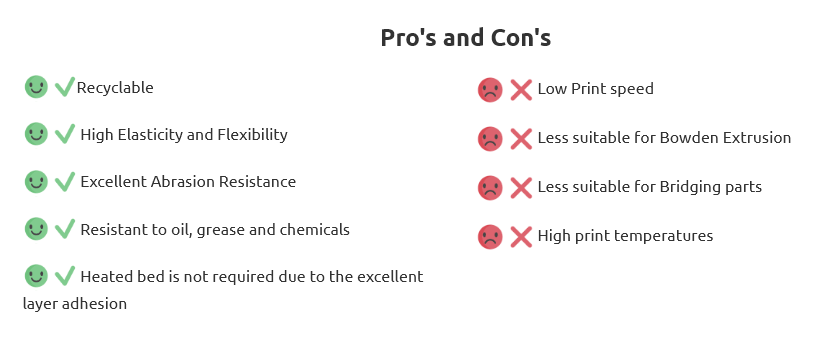

Characteristics
High elasticity and flexibility: TPU is known for its ability to stretch up to 500% and bend without breaking, making it an ideal material for applications that require flexibility.
Excellent printability: TPU is relatively easy to print compared to other flexible filaments like TPE. It adheres well to the print bed and exhibits minimal warping during the cooling process.
Recommended printing settings: For optimal results, print TPU at a temperature between 220°C and 250°C and a speed of 20 to 30 mm/s.
Direct drive extruder recommended: To prevent the filament from bending or curling during printing, it's advisable to use a direct drive extruder that provides adequate support for TPU.
Chemical resistance: TPU is insoluble and resistant to oils, greases, and chemicals, making it suitable for applications that require durability in harsh environments.
Wide temperature range: TPU can withstand a broad range of temperatures, both low and high, making it versatile for various applications.
Additional Tips:
- Dry your TPU filament before printing: Moisture can cause printing problems, so drying your filament beforehand can improve print quality.
- Use a textured print bed: A textured print bed can provide better adhesion for TPU, especially on the first layer.
- Experiment with different print settings: Find the optimal print settings for your specific TPU filament and printer.
- Be patient: TPU printing requires more patience and experimentation compared to other filaments.
By following these tips, you can achieve successful and high-quality TPU 3D prints. Remember to always refer to the specific recommendations for your chosen TPU filament and printer.
